EXPLORER 510

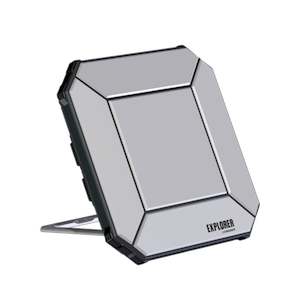

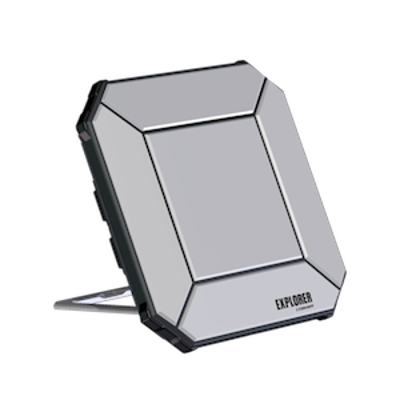

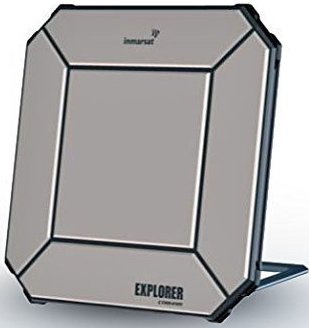

Explorer 510 satellite Internet Modem

When you require more than just dial up speed to access emails or the internet. The Explorer 510 is the answer.

Truely reliable and very easy to use, the Explorer 510 is tried, tested and a proven way to access satellite internet that keeps you connected to the world wherever you are.

For business or pleasure ask yourself, "Whats the cost of not being connected" ?

Whether for getting back urgent Geo results, looking at your shares or simply catching up with the footy or cricket scores and highlights. The explorer 510 is the cheapest short term option available to you today.With background data speeds of up to 464kbps its just like being in the office even when you're in the middle of whoop whoop.

With voice call available, this product acts as an all in-in-one sat phone and internet device for work or play.

Deal Includes

• Satellite Internet
• Access to Email via satellite
• Access to Voice Calls via satellite internet
• And much much more ...

The Explorer 510 is a compact, reliable and easy to use satellite internet device that keeps you connected to the world wherever you are. With background data speeds of up to 464kbps its just like being in the office even when you're in the middle of nowhere.With voice call available, this product acts as an all in-in-one sat phone and internet device for work or play.

Whats in the Box

• Wall Charger
• Ethernet Cable
• USB to Ethernet Cable
• Car Charger

Rental handsets don’t require an additional plan, Calls made from the phone charged as follows:

Airtime Plans (for purchased handsets)

Iridium Pre Paid Options Prices exclusive of GST 75 Minute - 1 Month Validity $229.00 200 Minute- 6 Month Validity $675.00 300 Minute - 12 Month Validity - not able to be recharged $850.00 500 Minute - 12 Month Validity $1120.00 Top Ups For 75/500 minutes users only - One Month extension $75.00 SMS to the Satellite Phone $FREE $ $ $ $ $ $ $ $

Iridium Post Paid - Local number plan - 12 month minimum duration Benefits those who expect to receive calls to the sat phone. (Prices exclusive of GST and call charges are per 60 seconds) Activation Fee $40.00 Monthly Access Fee $45.45 Flagfall $0.45 Iridium to PSTN or Mobile per 30 seconds $0.90 Iridium to Iridium $1.25 Data Call (within Australia) $0.90 Outside 200 nm rate (note: incoming calls also charged while overseas) $1.13 Voice Mail Box $0.90 SMS Messaging from the Satellite Phone $1.00 SMS to the Satellite Phone $rate determined by originators provider Other Satellite Networks $12.50 Inbound call to Voicemail $0.90 $ $

Iridium Postpaid Aust-50 Plan 12 month minimum Plans at a glance (Prices exclusive of GST and call charges are per 30 seconds) Activation Fee $50.00 Monthly Access Fee $50.00 Flagfall $Nil Iridium to PSTN or Mobile $0.90 Iridium to Iridium $0.90 Data Call $1.30 Call forwarding to Fixed $0.90 Call forwarding to Iridium $0.90 Outside 200nm rate $Not Possible Voice Mailbox $0.90 Two stage dialing (Fixed to Iridium) $1.75 SMS Message $1.00 SMS to the Satellite Phone $FREE Iridium to other satellite networks $14.00

Iridium Post Paid Global Plan Full Global rates whilst abroad - (Prices exclusive of GST and call charges are per 30 seconds) Activation Fee $40.00 Monthly Access Fee $70.00 Flagfall - Connection Charge $NIL Iridium to PSTN or Mobile * $1.25 Iridium to Iridium $0.80 Data Call $1.00 Voice Mailbox $1.00 text8: SMS Message $1.00 Iridium to other satellite networks $14.00 Incoming Calls $NIL SMS to the Satellite Phone $FREE $ $ $

Specs Heading

Satellite Phone & Internet - For Beginners and Specialists Alike

Setting up your EXPLORER 510 is quick and easy. Just plug into your laptop either via ether Via network cable or WIFI, point the antenna towards the satellite - and you are online.

The EXPLORER 510 is based on the same core technology as EXPLORER 300 and 700, making it easy for you to switch between these three models as they have identical interfaces.

At 200mm x 200mm x 50mm, EXPLORER 510 is smaller than a standard laptop and weighs less than 1.4 kg. It is the smallest EXPLORER BGAN terminal ever but despite its compact size it delivers reliable communication in any conditions.

Available on:  iTunes App Store and Google Play

Specs:

Specifications
Dimensions
Total H / W / D: 202 / 202 / 51.8 mm
7.8 / 7.8 / 1.6 inches
Weight (incl. battery): 1.4kg / 3.1lbs
Data capabilities
Standard IP: Up to 464 kbps
Streaming IP: 32, 64, 128 kbps
Voice capabilities
Standard voice: 4 kbps
Premium voice: 3.1 kHz audio, 64 kbps
Inmarsat frequencies: 1518.0 – 1525.0 MHz (Rx) (EMEA)
1525.0 – 1559.0 MHz (Rx)
1626.5 – 1660.5 MHz (Tx)
1668.0 – 1675.0 MHz (Tx) (EMEA)
EIRP: 15.1 dBW ±1dB
User interface: Two LED (WLAN, Status), 1 Power Button
USB Host, Cobham web interface
Languages: ENG, FR, DE, ES, RU, JP and CN
Approvals: CE, FCC, IC, C-TICK
Inmarsat Class 2 Type Approval

Interfaces
WLAN Access Point
Standard: IEEE 802.11 b/g/n
1 x USB host interface
Version: 2.0 (host)
Charging: Up to 1A
1 x BGAN SIM-Card slot
Environmental conditions
Temperature
Operational (ambient): -25°C to 55°C / -13°F to 131°F
Storage: -25°C to 80°C / -13°F to 176°F
Battery storage temperature
1 month: -20°C to 60°C / -4°F to 140°F
3 months: -20°C to 45°C / -4°F to 113°F
1 year: -20°C to 25°C / -4°F to 77°F
Relative humidity: 95% non-condensing
at 40°C/ 104°F
Robustness: 0.5 m/1.64 ft drop on concrete
(operational, 95% survival)
Water and dust: IP-66 Compiant
Power
DC input range: 10.5-32VDC
Power consumption
Standby / transmit: 2.8W / 19W (typical)
During charging: 20W (max.)
Connector type 2.5mm EIAJ RC-5320-IV
AC/DC power supply
Input: 100-240VAC, 47-63Hz, 64W
Output: 19VDC
Built-in Battery: Lithium ion (rechargeable)
Stand-by time: 24h, 0°C to 55°C / 32°F to 131°
Standard call: Minimum 3h (TBC)
Receive time, max.: 4h40m @ 128kbps
Transmit time, max.: 2h25m @ 128kbps
Recharge time: Less than 3 hours
Charge temperature: 0°C to 45°C / 32°F to 113°

Other features
EXPLORER Connect App for IOS and Android:
Includes a SIP Softphone, Terminal Access to control your
BGAN and Pointing Assistance.
EXPLORER Cellular Modem for USB:
With the EXPLORER LTE Modem you can connect local cellular
networks and use the EXPLORER 510 as wireless router for all
your devices.
Package
• EXPLORER 510 terminal
• Built-in Rechargeable Lithium Ion Battery
• EXPLORER Softbag
• USB to Ethernet Converter Cable
• 100-240VAC Power Supply
• Multi-Languge Quick Start Quide
• Multi-language webserver and embedded manual
(ENG, FR, DE, ES, RU, JP and CN)
